Luponds Multi Units 300mm & 600mm Projecting Curtain DIY Water Wall Kit
This bundled package comprising multi units of a 304 grade stainless steel waterwall spillways, a high head height pump which allows you to create a multi projecting effects water wall and associated fittings to allow you to create a Projecting Multi Curtain Water Wall Effect with our Kit. It’s easy to connect and perfect for DIYers!
Features:
- 304 grade stainless steel water spillway blades
- Weather resistance non kink grade hose
- High quality durable fittings
- Easy to install
- High performance and high head height pump
Kit Includes
- Water Blade Spillway:
- Size: 1 x 300mm Long x 80mm Wide x 80mm High
- Size: 1 x 600mm Long x 80mm Wide x 80mm High
- Lip: 35mm
- Material: 304 Grade Grade Stainless Steel
- Inlet Size: 1 x 25mm Female Treaded
- Inlet Entry: Bottom
- Warranty: 1 year Limited Manufacturer warranty
- Pump:
- Dimensions: 246mmL x 150mmW x 195mmH
- Power Input: 220-240 V/50 Hz
- Inlet/Outlet: 38mm
- Power Consumption: 130 Watts
- Turnover Rate: 13000 LPH
- Head of Water Max: 5.0 Metres
- Connection Cable: 10 Metres
- Accessories: 1 x Female Threaded Coupling , 1 x director tail 38mm,32mm,25mm,19mm
- Warranty: 2 yrs Manufacturer warranty (Motor only), 1 year if dry install. Cutting of pump power cord will void warranty.
- Hose:
- Commercial grade non kink weather resistance flex PVC hose
- 5metre – 38mm (1.5 inch) inner diameter
- Connection Kit: 40mm Multi Unit associated Fittings
- General Install Guide Included
*Note – As a guide the Spillway should be installed no higher than 900mm from water level. The further the water drops, the narrower the water sheet widths become due to surface tension. The projection from the wall is approximately 100-200mm.

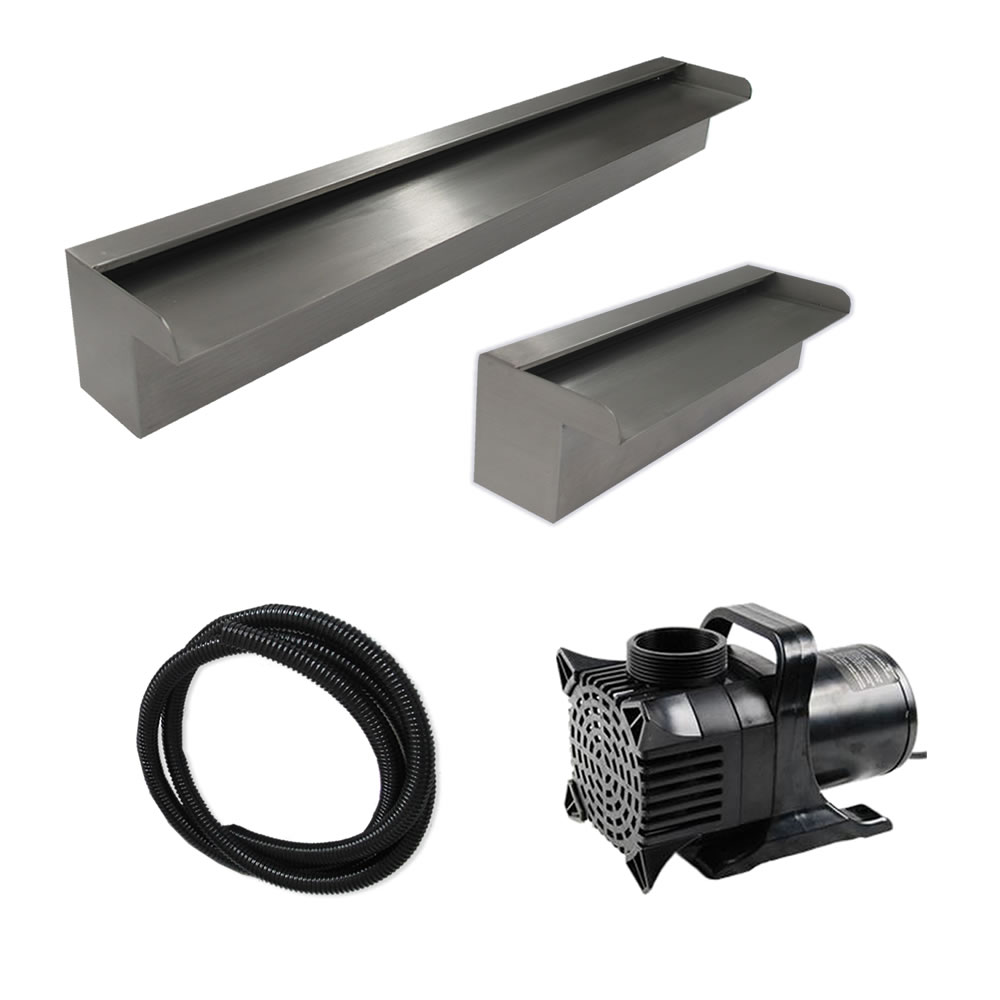

Package Contents
1 x 300mn Wide 304 Grade Stainless Steel Water Blade
1 x 300mn Wide 304 Grade Stainless Steel Water Blade
1 x 600mn Wide 304 Grade Stainless Steel Water Blade
1 x Luponds 13000LPH Multi Use Pond Pump with 10m Power Cord
1 x 5metre 38mm Hose
40mm Multi Unit Associated Connection Kits
1 x General Install Guide
1 x Luponds 13000LPH Multi Use Pond Pump with 10m Power Cord
1 x 5metre 38mm Hose
40mm Multi Unit Associated Connection Kits
1 x General Install Guide
